Microprocessor Facts

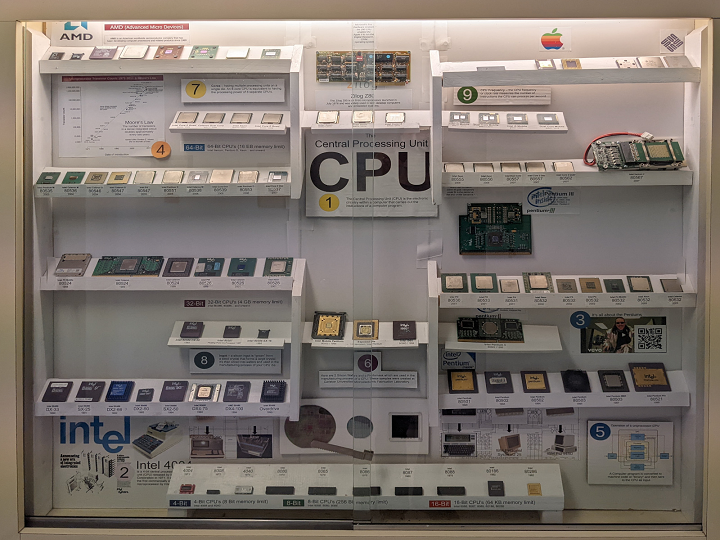

Some must know facts about the Microprocessor:

  1. CPUCentral Processing Unit
    The Central Processing Unit (CPU) is the electronic circuitry within a computer that carries out the instructions of a computer program
  2. Intel 4004
    The Intel 4004 is a 4-bit central processing unit (CPU) released by Intel Corporation in 1971. It was the first commercially available microprocessor by Intel.
  3. It’s all about the Pentium!  https://youtu.be/xr9IZQa_vpU
  4. Moore’s Law
    The number of transistors in a dense integrated circuit doubles approximately every two years. Named after Gordon Moore, the co-founder of Intel.

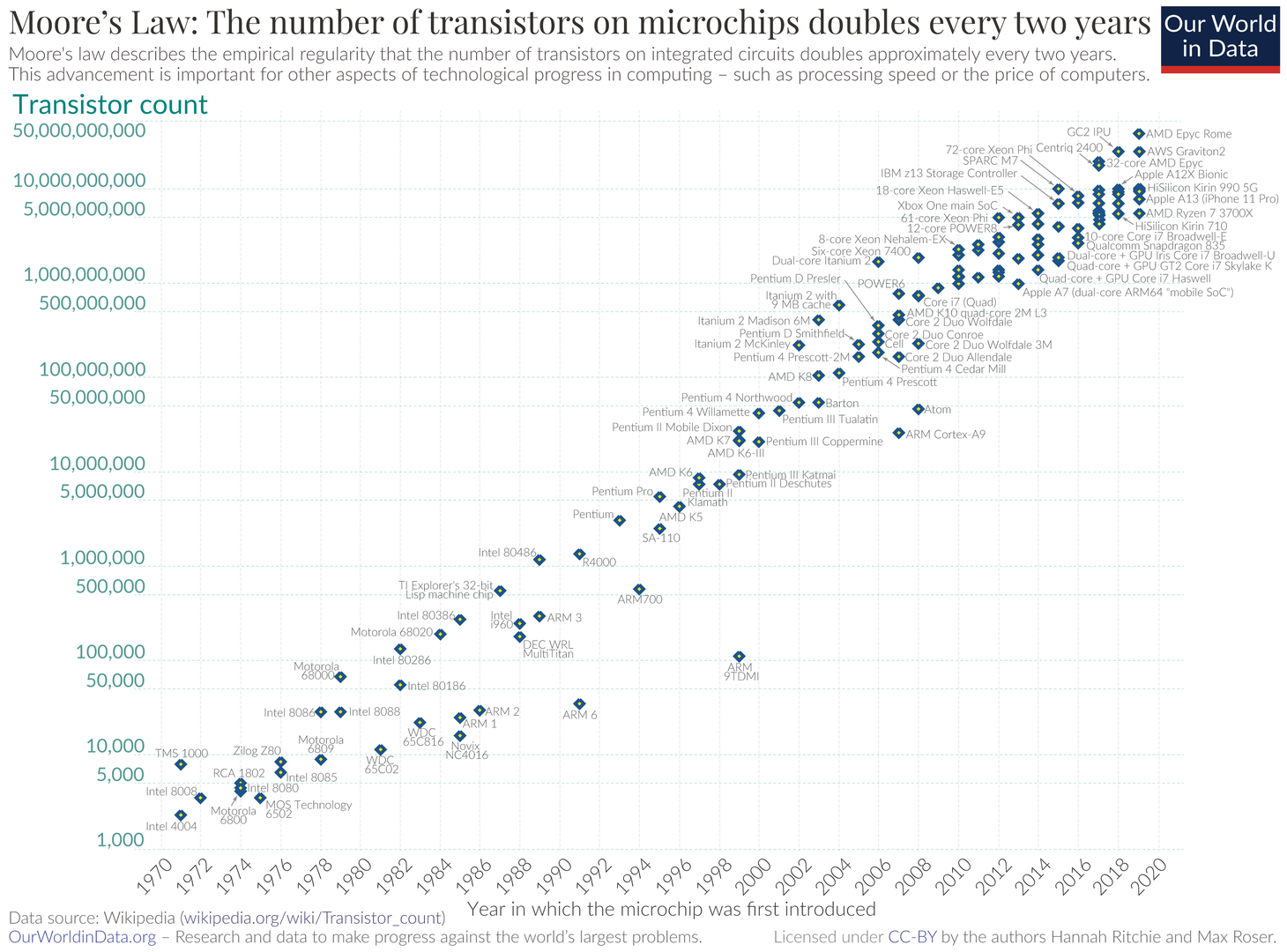

    Moore's Law

    By Max Roser, Hannah Ritchie – https://ourworldindata.org/uploads/2020/11/Transistor-Count-over-time.png, CC BY 4.0, https://commons.wikimedia.org/w/index.php?curid=98219918

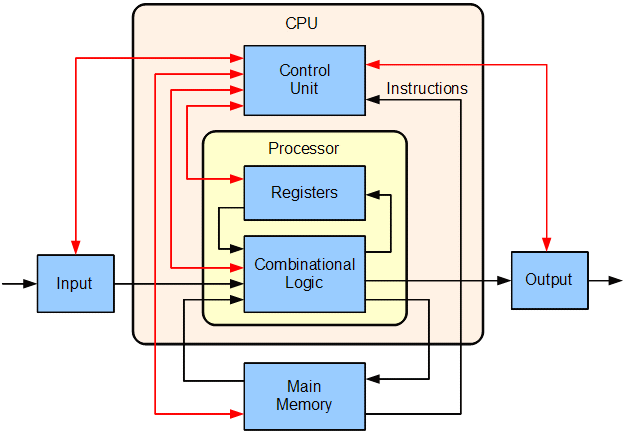

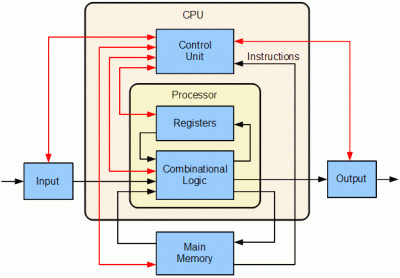

  5. Block diagram of a basic uniprocessor-CPU computer: Black lines indicate data flow, whereas red lines indicate control flow; arrows indicate flow directions.

    By Lambtron – Own work, CC BY-SA 4.0, https://commons.wikimedia.org/w/index.php?curid=37716438

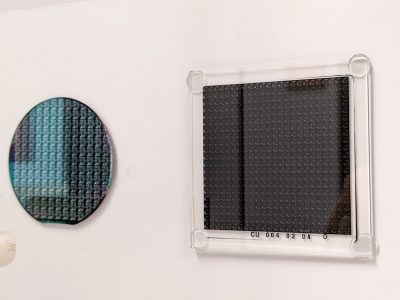

  6. Here are two silicon wafers and a photomask which are used in the manufacturing process of a CPU. These samples were created at Carleton University’s Microelectric Fabrication Laboratory.
  7. Cores
    Having multiple processing units on a single die. An 8-core CPU is equivalent to having the processing power of 8 single CPUs.
  8. Ingot
    A silicon ingot is “grown” from a seed crystal that forms a large crystal. It’s then sliced into wafers and used in the manufacturing process of your CPU die.
  9. CPU Frequency
    The CPU frequency or clock rate measures the number of instructions the CPU can process per second.

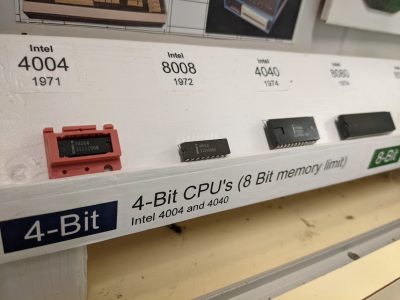

4 Bit CPUs

Name Year
Intel 4004 1971
Intel 4040 1974

The story of the Intel 4004

Intel 4004 die

Ted Hoff Inventor of the Microprocessor

8 Bit CPUs

Name Year
Intel 8008 1972
Intel 8080 1974
Intel 8085 1976

8-bit computing wiki

Zilog Z80

Microsoft card

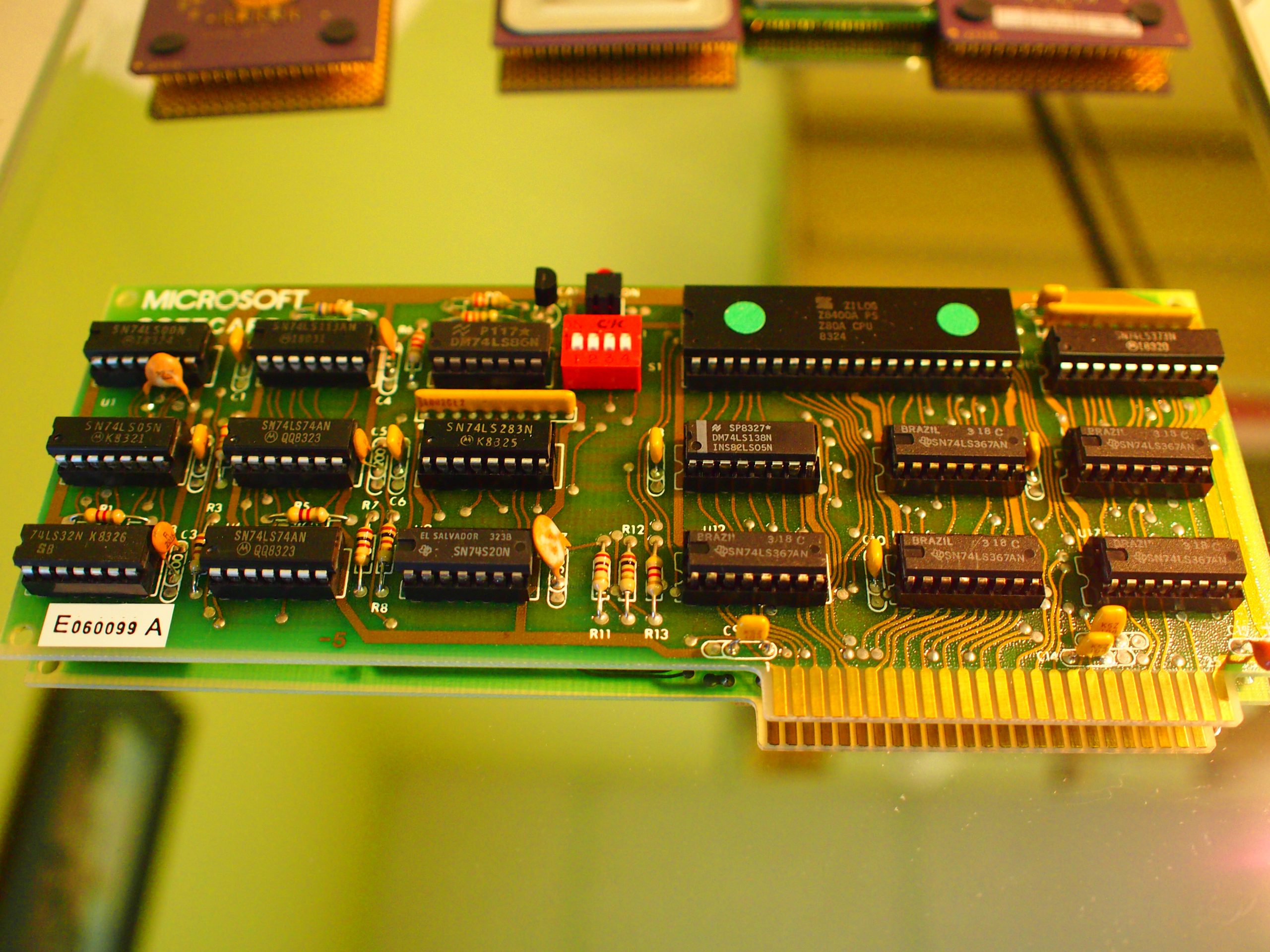

The Z-80 SoftCard from 1980 is a plug-in Apple II processor card developed by Microsoft to turn the computer into a CP/M system based upon the Zilog Z80 central processing unit (CPU)

The Zilog Z80 is an 8-bit microprocessor launched in July 1976 and was widely used in both desktop computers and embedded systems. [Thank you John Stewart, IT staff from the school of Mathematics, for donating this item to the display]

16 Bit CPUs

Name Year

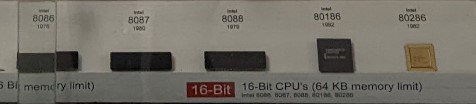

Intel 8086 1979
Intel 8087 1980
Intel 8088 1979
Intel 80186 1982
Intel 80286 1982

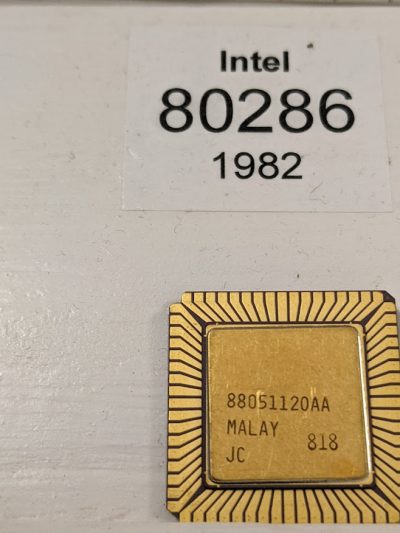

“Wow this 286-CPU had contacts and not pins. Ahead of its time.”

IBM Personal Computer/AT

32 Bit CPUs

Intel 80386, 80486… and onward

Name Year

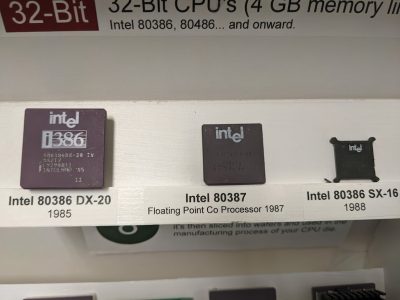

Intel i386 DX-20 (80386) 1985
Intel 80387 1987
Intel 80386 SX-16 1988

Name Product Code Year
Intel i486 DX-33 A80486DX-33 1990
Intel i486 SX-25 80486SX-25 1991
Intel i486 DX2-66 A80486DX2-66 1992
Intel i486 DX2-50 A80486DX2-50 1993
Intel i486 SX2-50 A80486SX2-50 1994
Intel i486 DX4-75 FC80486DX4-75 1994
AMD Am486 DX4-100 Am486DX4-100 1994
Intel i486 OverDrive 80486 1995

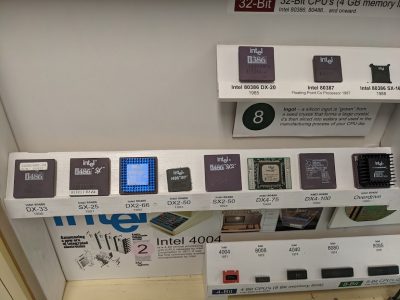

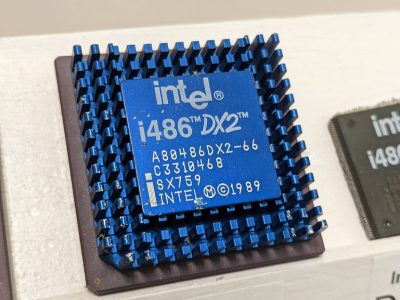

Intel A80486DX2-66 with a blue heatsink

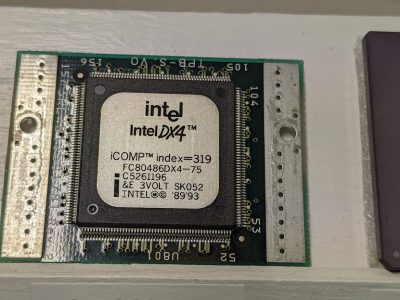

Intel DX4 FC80486DX4-75, most likely from an older laptop

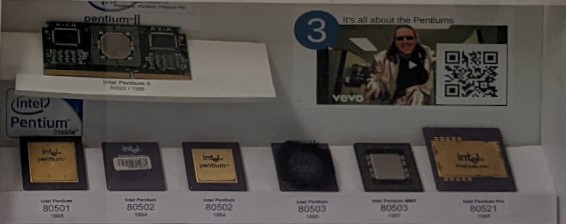

Intel Pentium

Name Product Code Year
Intel Pentium 80501 1993
Intel Pentium 80502 1994
Intel Pentium 80503 1995
Intel Pentium Pro 80521 1995
Intel Pentium II 80522 1997

Name Product Code Year
Intel PII Mobile 80524 1999
Intel Celeron 80524 1999
Intel PIII 80526 1999
Intel Celeron 80526 2001
Intel Xeon 80528 2001

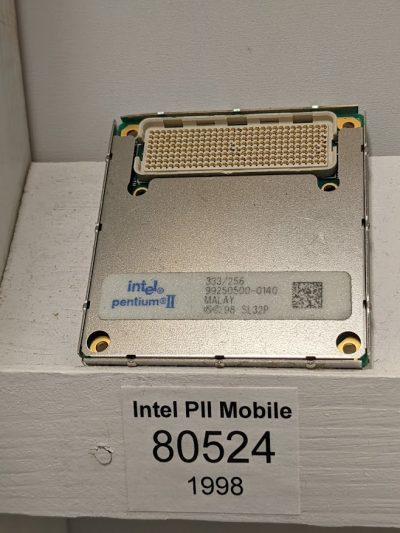

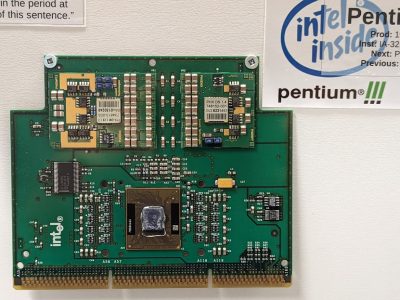

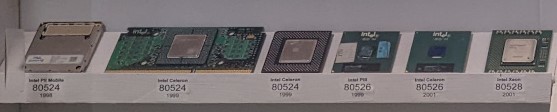

The desktop version of this CPU was a large cartridge design. The laptop version seen here is unique!

Name Product Code Year
Intel PIII 80530 2001
Intel PIII 80533 2001

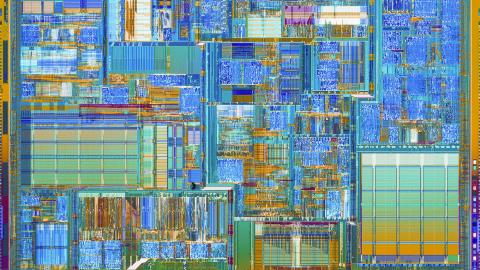

Intel P4 80531 2001
Intel Xeon 80532 2002
Intel P4 80532 2002
Intel P4 80532 2002
Intel P4 Mobile 80532 2002
Intel Xeon 80532 2003
Intel Celeron 80532 2003

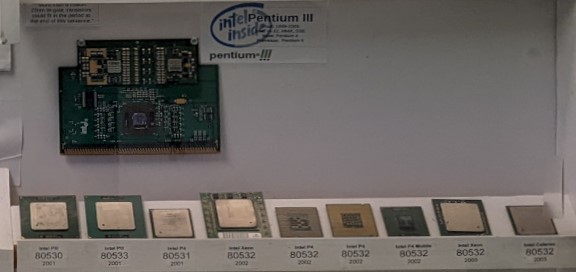

Intel Pentium III Xeon cartridge with the cover removed

Name Product Code Year

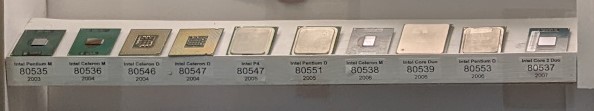

Intel Pentium M 80535 2003
Intel Celeron M 80536 2004
Intel Celeron D 80546 2004
Intel Celeron D 80547 2004

When the Intel Pentium 4 and D and Core2Duo CPU’s came out in 2004 Intel introduced the LGA (Land Grid Array)  sockets. Those are the CPU’s that have contacts rather than the PGA (Pin Grid Array) which are the CPU’s that have pin’s.

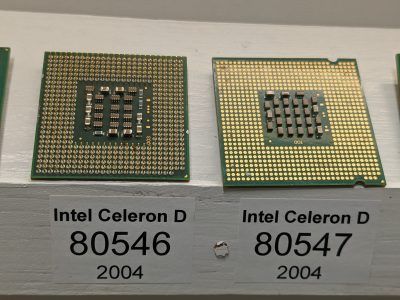

PGA socket: CPU Pins                     LGA socket: CPU Contacts

64 Bit CPUs

Name Product Code Year
Intel P4 80547 2005
Intel Pentium D 80551 2005
Intel Celeron M 80538 2006
Intel Core Duo 80539 2006
Intel Pentium D 80553 2006
Intel Core 2 Duo 80537 2007

Name Product Code Year
Intel Xeon 80555 2006
Intel Xeon 80556 2006
Intel Dual Core 80557 2007
Intel Core 2 Duo 80557 2007
Intel Core 2 Quad 80562 2007

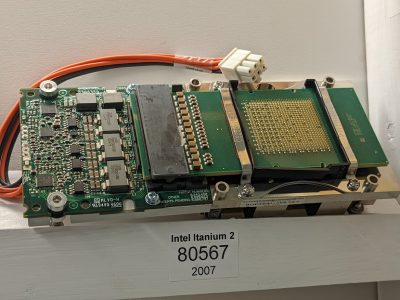

Intel Itanium 2 80567 2007

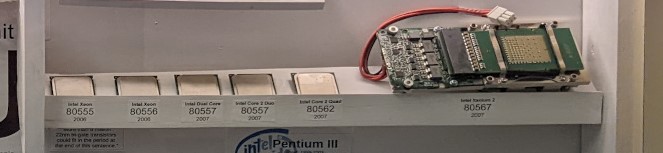

Itanium-based systems were produced by HP/Hewlett Packard Enterprise and several other manufacturers. In 2008, Itanium was the fourth-most deployed microprocessor architecture for enterprise-class systems.

Name Product Code Year
Intel Core 2 Quad 80569 2008
Celeron Dual Core 80571 2009
Intel Xeon 80574 2007
Intel Core 2 Quad 80580 2008

Name Product Code Year
Intel Xeon 80602 2010
Intel Xeon 80614 2010
Intel Core i3 80623 2011

Mobile Intel CPUs

Name Product Code Year
Intel i5 Mobile 80617 2010
Dual Core Mobile 80617 2010
Intel i5 Mobile 80627 2011
Dual Core Mobile 80627 2012

Other CPU’s

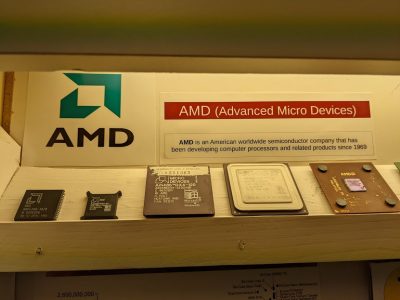

AMD Athlon CPU

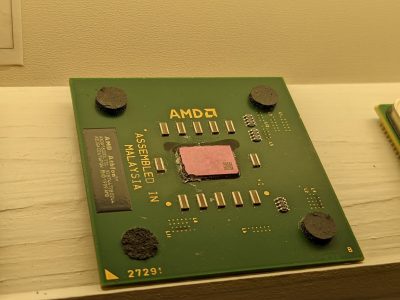

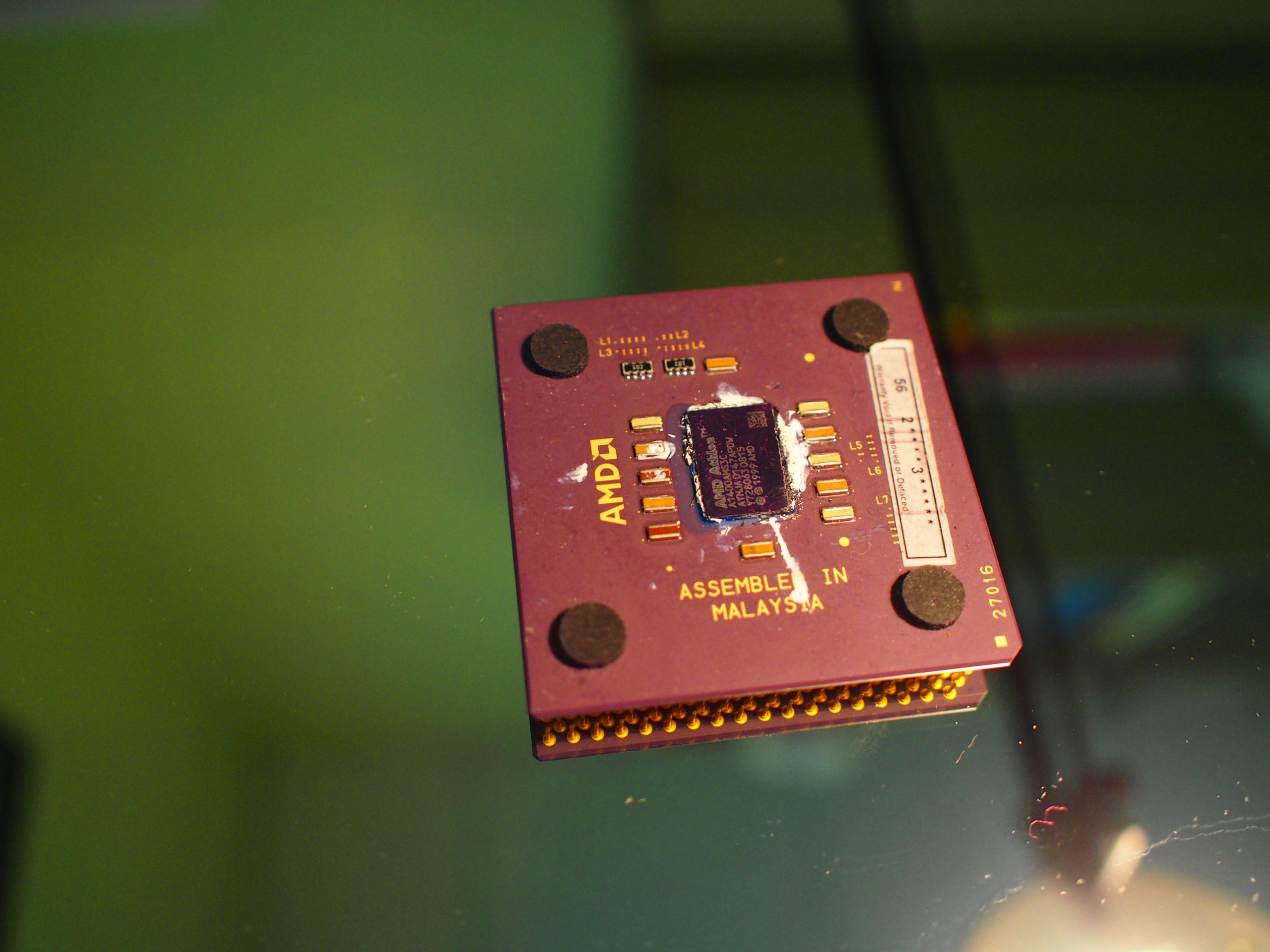

AMD Athlon CPU: You can see the shiny CPU die in the middle. This becomes exceedingly hot during operation and is cooled by a large metal heatsink and fan. You can still see the white thermal paste used to help conduct the heat.

AMD CPUs

Name Specific Model Year
AMD Am286 AMD N80L286-16/S 1984
AMD Am386 AMD Am386 9X-40 1991
AMD Am486 AMD Am486 DX4-120 1993
AMD K6-2 1999
AMD Athlon 1999
AMD Athlon XP AMD Athlon XP 1800+ 1999
AMD Athlon 64 2003
AMD Athlon 64 X2 2005

Apple & Sun CPUs

Name Year

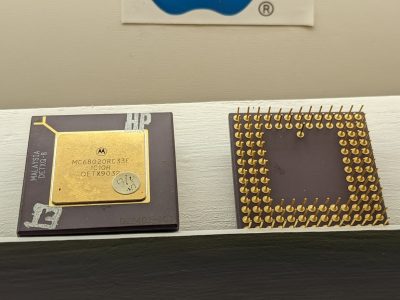

Motorola MC68020RC33
Sun UltraSPARC II 1997
Sun UltraSPARC III 2001
Sun UltraSPARC IV 2004

Name Product Code Year
Intel Mobile Pentium 80502 1994
Intel Pentium (Exposed Die) 1995
Intel i960 80960 1984

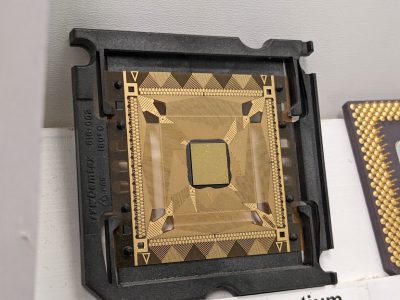

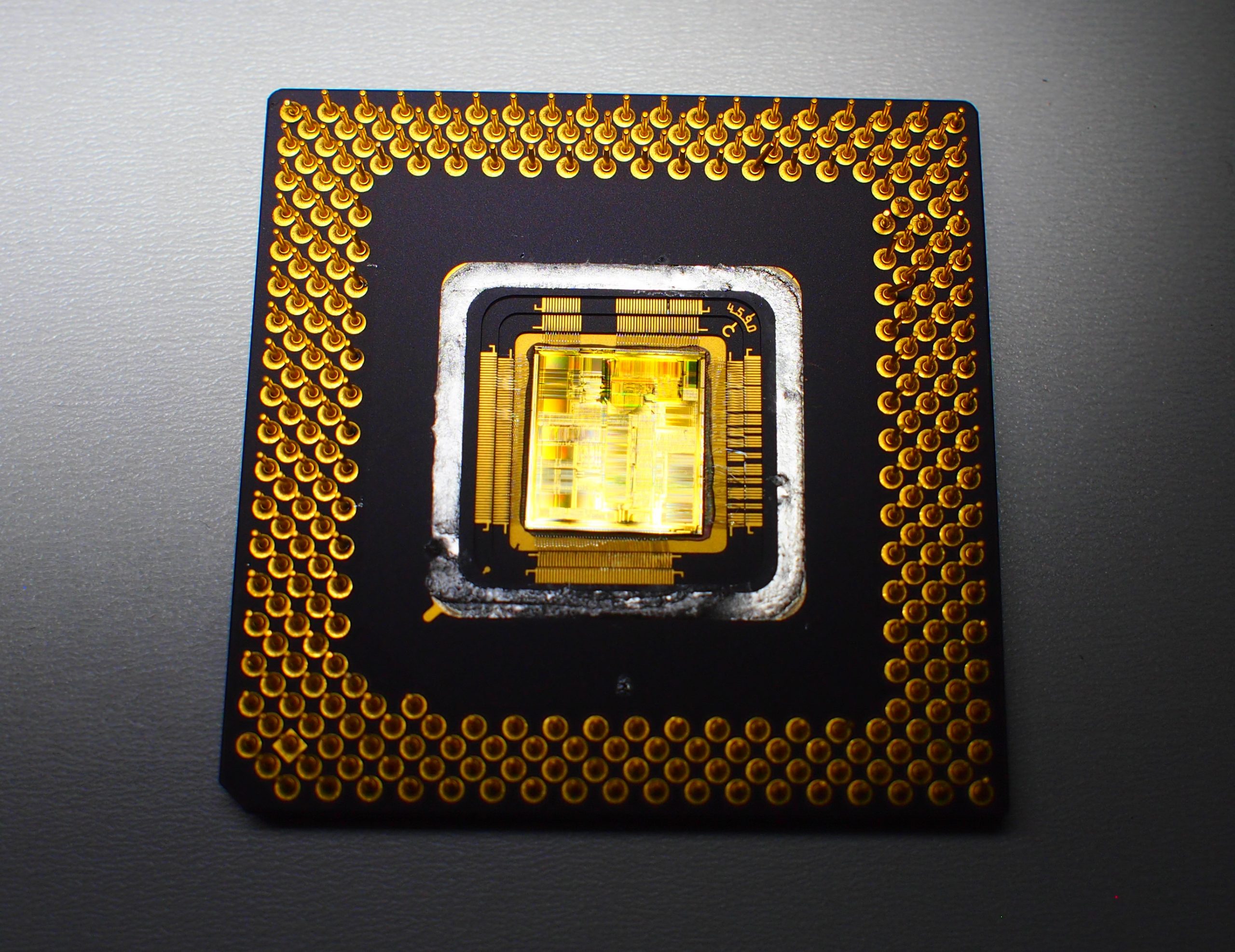

Intel 486 with exposed die

Intel 486 with an exposed die

Intel Mobile Pentium Processor
