SSH allows you to securely connect to remote computers and virtual machines. With SSH, you can use a computer remotely through the terminal, transfer files between the server and client, and even run graphical programs using X11 forwarding. By default, you will connect to SSH servers using the username and password associated with your account on the server; however, you can also set up something called an SSH Key Pair, which allows you to connect easily and securely.

What is an SSH Key Pair?

As the name suggests, a key pair consists of two keys: the public key and the private key. While you can connect to SSH servers using your account username and password, you can also connect using a username and an authorized key pair associated with that username.

Your public key acts like a personalized padlock that resides on servers. It is an encrypted file that you can publicly distribute to different servers. When you associate a public key to your account, you are saying that anyone who can unlock the public key can also unlock my account without the need for my account password.

Your private key is the key that unlocks your public key and is kept on the client. As the name suggests, this is a file that should be private to you and only you. While many private keys do not have file extensions, you may see private keys with the .pem file extension when using cloud services.

For an extra layer of security, you can add a passphrase – a password to protect your private key. It may be less convenient, but the added layer of security might be valuable with security-critical services.

Why use Key Pairs?

Key pairs offer a number of conveniences when you use remote services:

  • Provides a way of authenticating that is less vulnerable to password guessing and brute force attacks
  • Distribute your public key to get system access without ever setting up passwords
  • Have a different key pair for each device and simply delete the public key from the server to revoke the old devices’ access
  • Create a key pair (without a passphrase) for scripts or tools like MPI, Hadoop, etc. so that they can authenticate with other devices without a password prompt
    You can find a detailed example of setting up ssh key login for scripts in this article:
    Using SSH Keys to Support Multi-node Compute Tools & Scripts

Remember that your public key is truly public; as long as you protect your private key file, you may distribute your public key however you would like. Nobody can do anything malicious with your public key file, so you can use them to create a shared identity across multiple services. For example, you could create a passwordless key pair for version control and send the public key to services like Github and Gitlab. The same public key will work across the different services as long as you use the same private key. You could then create a password-protected key pair for use with more critical services, like your OpenStack instances.

Passwordless key pairs are also useful for automated tasks. For example, you may wish to write a script that backs up your OpenStack instance to your home computer every day. Normally the task would need to sign in to your home computer to send files, but that would require prompting for a username and password. Instead, you could use a passwordless key pair and the OpenStack server will use the private key file to authenticate with your home computer, rather than prompting for a password.

Comparing Password vs Key Pair Authentication

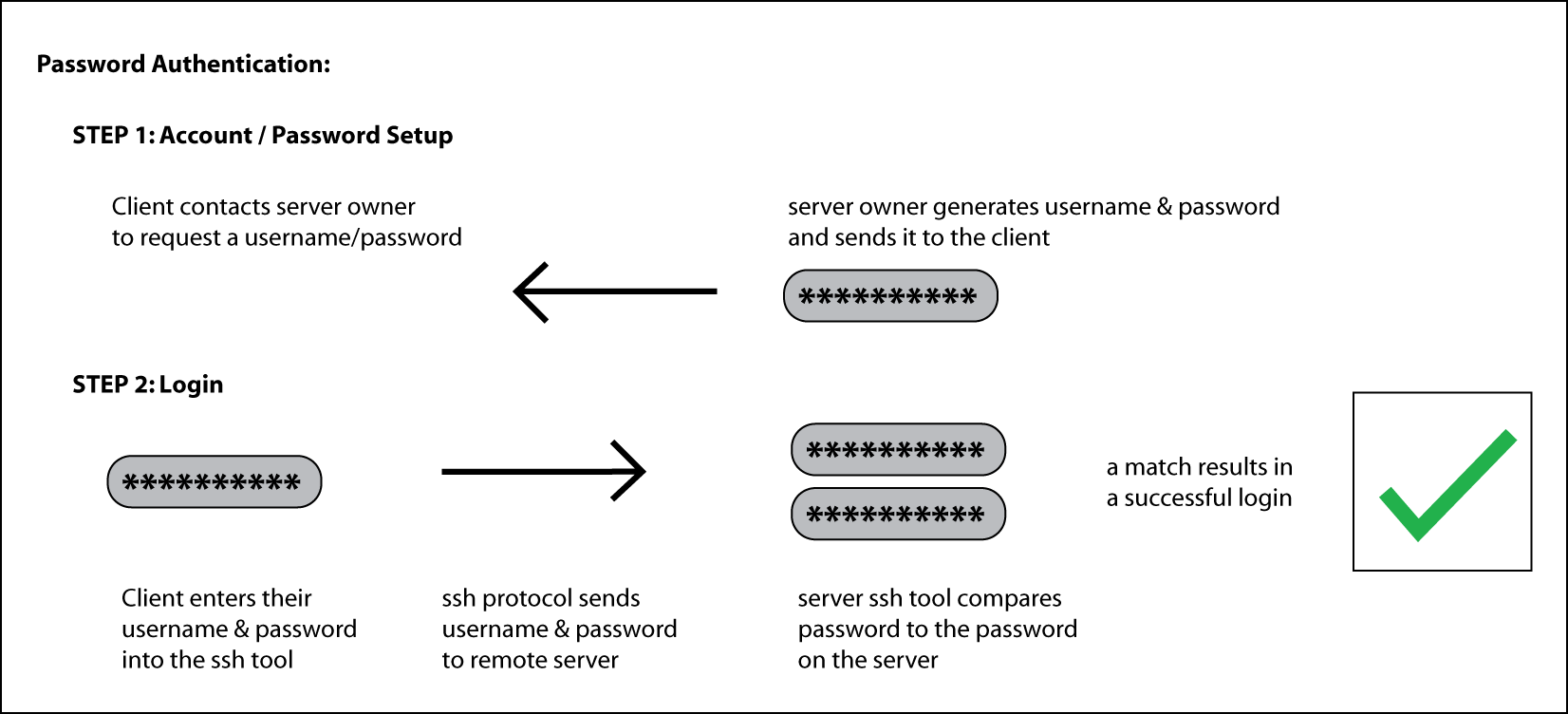

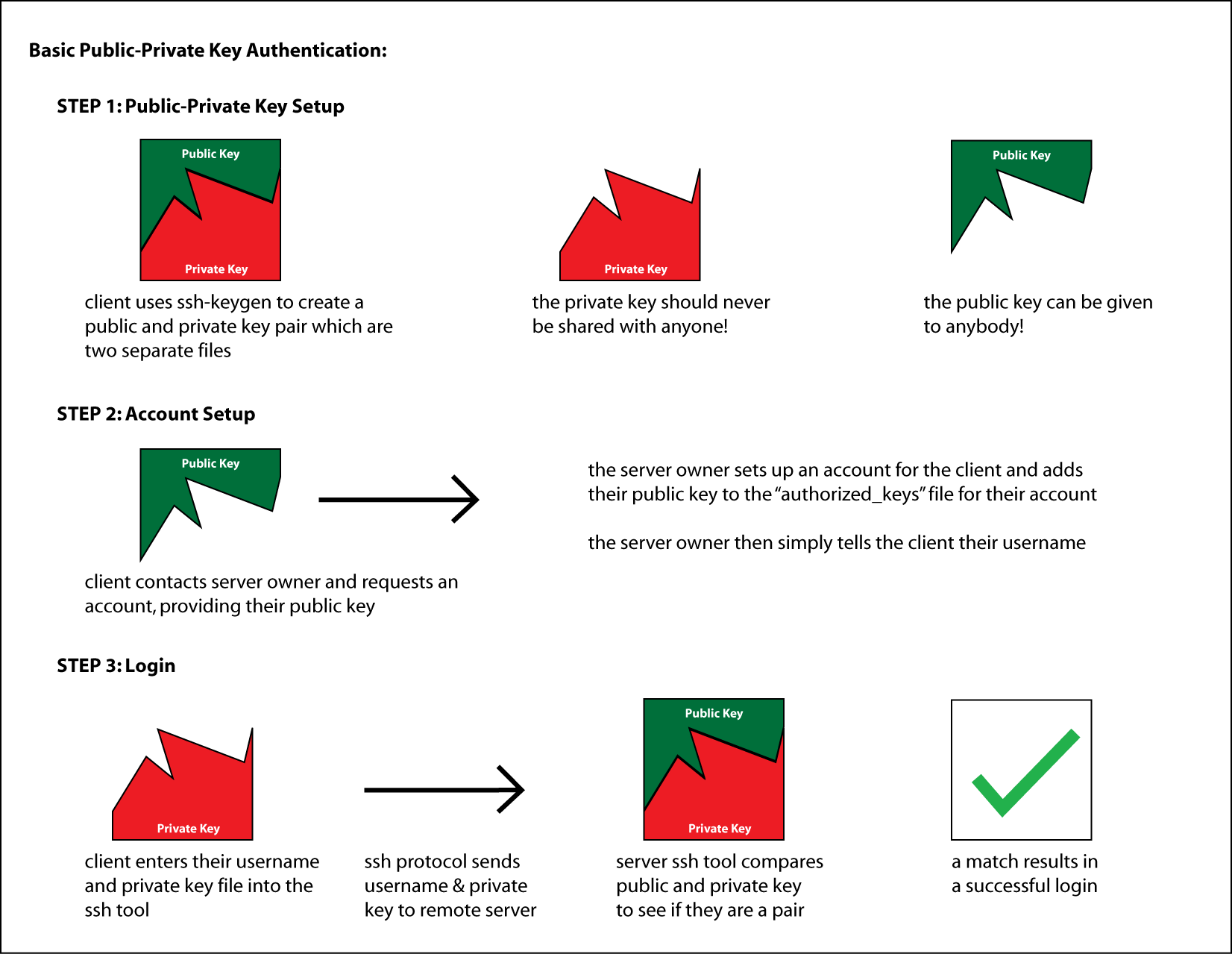

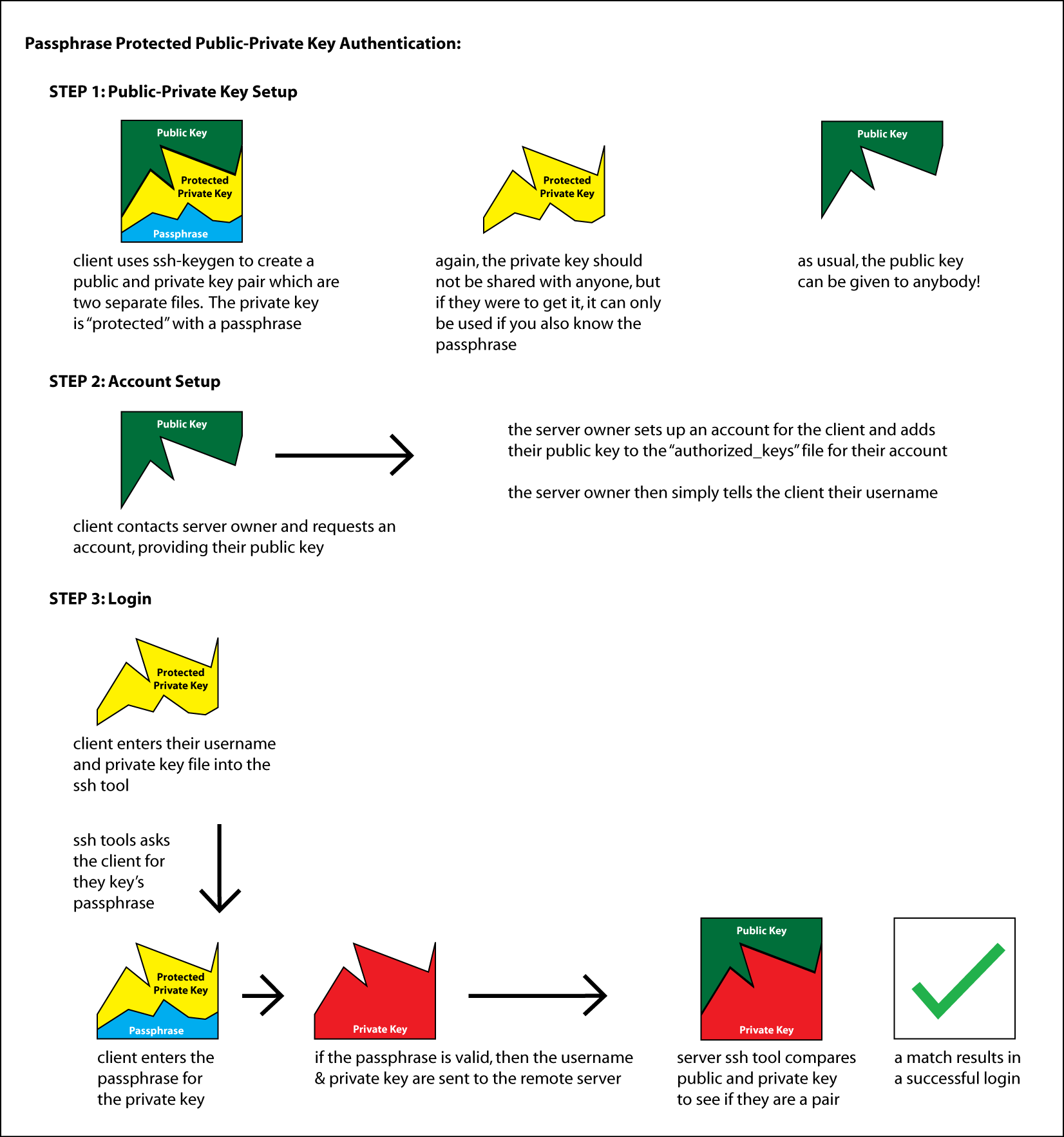

Below we show comparisons between the password and key pair authentication mechanisms.
NOTE: These are grossly over-simplified diagrams of how the various technologies work. It is meant to just provide an general idea of the steps involved and what is happening.

Creating Key Pairs

Most operating systems support a tool called ssh-keygen that allows you to create a public/private key pair.

Linux / Apple OSX / Windows 10

  1. Open a terminal and enter the ssh-keygen command
    On Windows, you can open a Command Prompt or PowerShell
    Enable OpenSSH on Windows 10 if ssh-keygen is not enabled on Windows 10 (older versions do not have it enabled by default)
  2. Type a filename for the key, or use the default
    • If you are only using one key pair, you can keep the default (usually ~/.ssh/id_rsa)
    • If you are creating multiple key pairs, you should name it something meaningful (e.g. ~/.ssh/home_versioncontrol_key)
  3. Finally, type your passphrase if you wish to use one.
    If your key has a passphrase, then if someone somehow gets your private key file, they will still not be able to use it unless they are able to guess your passphrase

    • NOTE: When typing passwords in the terminal, no text will appear while you type — press Enter to continue
    • NOTE: DO NOT enter a passphrase if you plan to use this key for automated scripts or applications (e.g.: MPI, Hadoop, git, etc.)
  4. Your public and private key pair should now be available in ~/.ssh/ or wherever you specified.

Authenticating and Connecting with Key Pairs

Linux / Apple OSX / Windows 10

Authorize your key pair on a remote server

Once you have created your key pair, you need to authorize the key pair to unlock your account.

  • Copy your identity (public key) over to the remote server using the ssh-copy-id command:
    ssh-copy-id username@remoteservername.ca – substituting your particular username and remote server name (or IP address)
  • NOTE: If you created a specific ssh key file (rather than using the default), you can specify it with the -i option:
    ssh-copy-id -i <PUBLIC KEY FILE> username@remoteservername.ca – giving your public key file

Connect to the remote server using the key pair

Once you have authorized the key pair you can connect with it.

  • Connect using your default ssh key using the ssh command:
    ssh username@remoteservername.ca – substituting your particular username and remote server name (or IP address)
  • NOTE: If you created a specific ssh key file (rather than using the default), you can specify it with the -i option:
    ssh -i <PRIVATE KEY FILE> username@remoteservername.ca – This time specifying your private key file

For information about connecting with PuTTY, visit the Connecting to OpenStack with SSH and PuTTY quick-start guide.

Advanced Topic: Configuring SSH

Once you start using SSH for many different services and making use of multiple key pair identities, it may be useful to start using an SSH configuration file.

SSH configs enable:

  • Giving servers simpler aliases, e.g. typing ssh openstack rather than ssh 134.117.x.x
  • Using different identities with different servers without needing to specify each time
  • Forward ports with SSH to access remote services, such as forwarding a Jupyter Notebook server from a remote port to a local port

There is a lot of information available online about setting up ssh configurations for different purposes. Your ssh configuration is typically in your home ssh folder, such as ~/.ssh on Linux or %USERPROFILE%/.ssh/ on Windows, with OpenSSH installed. If there isn’t a file called config you can make one. Below is a sample SSH configuration to have one passwordless private key for Github and another passworded key for OpenStack, with parts that need to be switched for individual use.

Using the above file, you could then connect to your OpenStack instance using ssh openstack rather than ssh -i ~/.ssh/openstack.pem username@134.117.x.x and git will also use the correct identity file when using SSH and working with GitHub.com.
